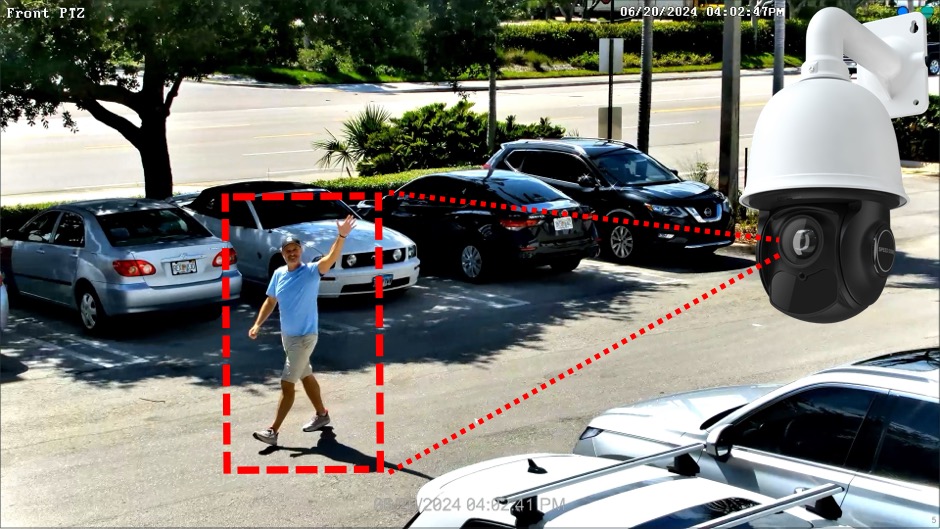

In this video, I setup line crossing detection using our Viewtron 4K auto-tracking PTZ camera. The AI software built into these PTZ cameras supports human detection and car detection for both line crossing and intrusion detection type events.

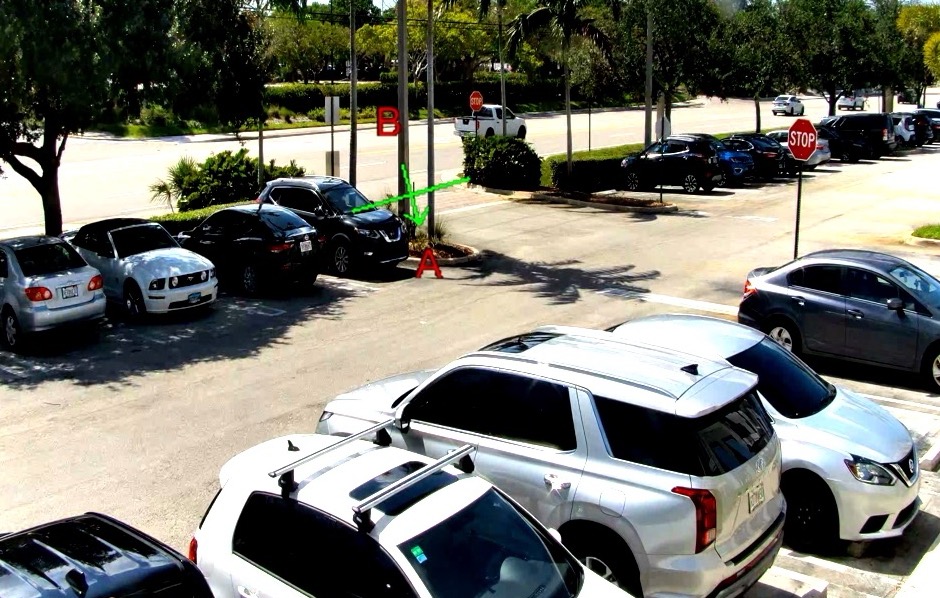

AI Software Line Crossing Detection Event
On the Viewtron IP camera NVR, I configured a line at the entrance of the parking lot at CCTV Camera Pros office. Line crossing detection can be configured to trigger an alarm when a human and / or vehicle crosses the line in one direction B->A, the other direction A->B, or both directions A<->B. In this case, I only wanted to detect humans when they are entering our parking lot, so when a person crosses the line going from area B to area A.

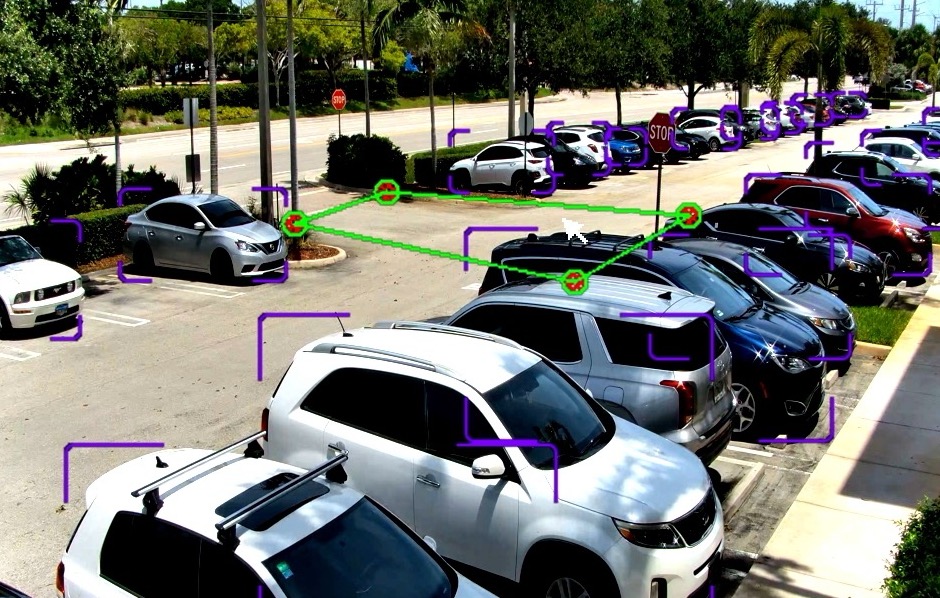

AI Software Intrusion Detection Event
In my last video, I tested car detection using an intrusion zone, instead of line crossing. Intrusion detection triggers an alarm when a human and / or vehicle object penetrates the intrusion zone at any location. The line crossing event gave me the control that I needed to only trigger the auto-tracking PTZ when a person crossed the line entering our parking lot. Below is the video demo of the car detection and auto-tracking via intrusion detection.

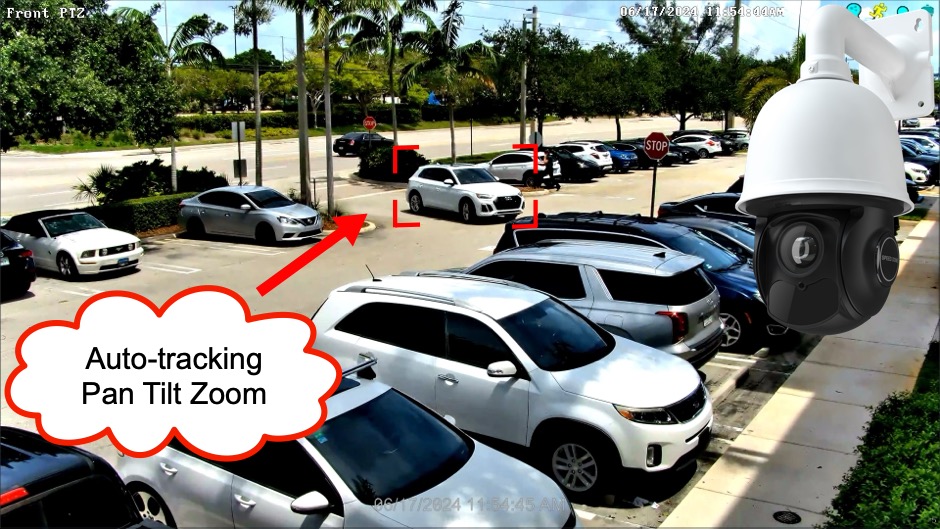

AI Car Detection and Tracking
Here is the previous video that I made to demonstrate car detection and auto-tracking that is triggered via intrusion detection. I used the same VIewtron 4K PTZ camera for this video.

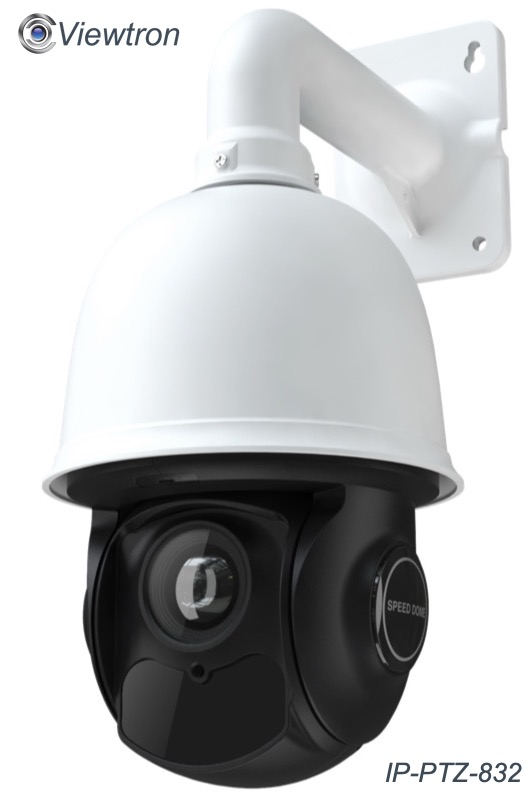

4K PTZ Camera w/ Auto-Tracking AI Software
The Viewtron IP-PTZ-832 is a 4K auto-tracking PTZ camera with power over Ethernet, IR night vision, and auto-tracking AI software. In addition to the AI human detection that is demonstrated in the video, this camera can also motor vehicles and non motor-vehicle objects such as bicycles. This IP camera is NDAA compliant which means that it is approved for US government purchase and installation at government facilities.

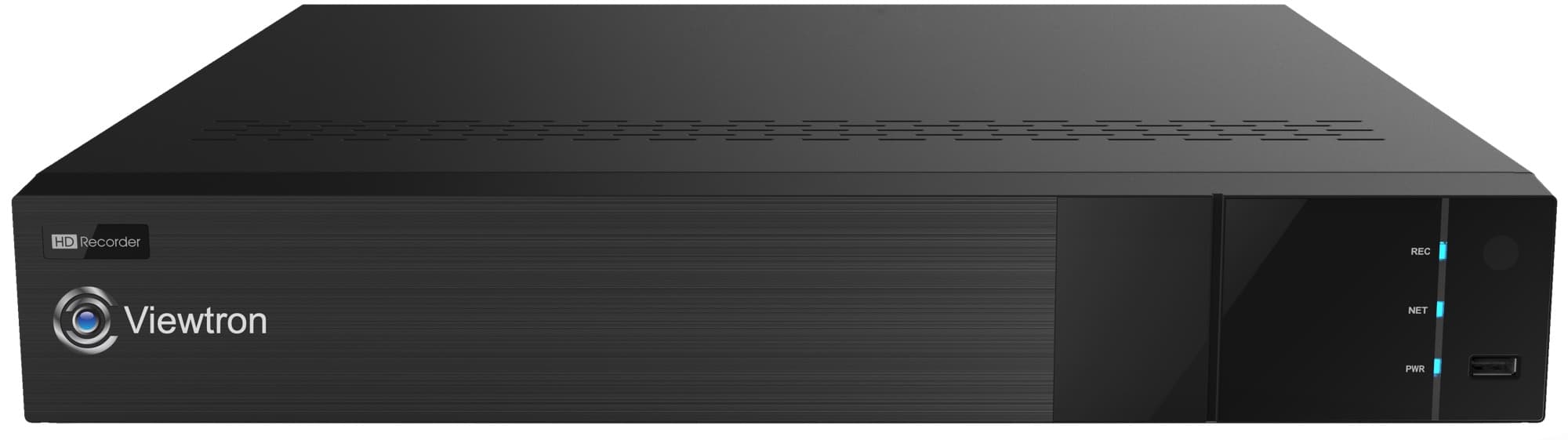

IP Camera NVR
This is the Viewtron NVR that the PTZ camera is connected to in the above video demos. In addition to the auto-tracking capability, the pan tilt zoom can also be controlled manually via the USB mouse that is connected to the NVR.

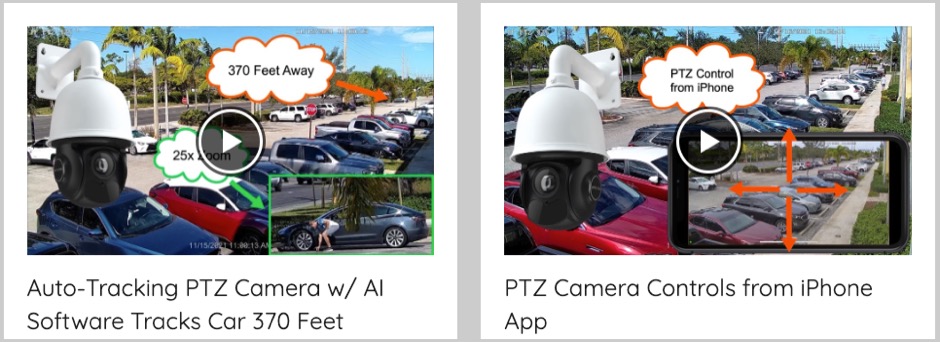

Auto-Tracking PTZ Camera Video Demos
Click here to watch all of our IP PTZ camera video demos. Please note that all Viewtron auto-tracking PTZ cameras have the same AI software capability. The main differences between the different PTZ models is the resolution and the zoom lens. Most of our existing video demos were recorded using the 4mp / 25x zoom model.
Related Video Surveillance Products
- PTZ Cameras – in addition to auto-tracking IP PTZ cameras, CCTV Camera Pros also supplies analog CCTV and HD BNC pan tilt zoom cameras.
- AI Cameras – you can find all of the Viewtron AI cameras that we supply on this page.
- ALPR Cameras – CCTV Camera Pros sells ALPR cameras (automatic license plate recognition) for IP camera systems and license plate capture cameras for BNC camera systems.
Have Questions?
Thank you for reading my email and watching my videos. If you have any questions, please email me at mike@cctvcamerapros.net.
